Description

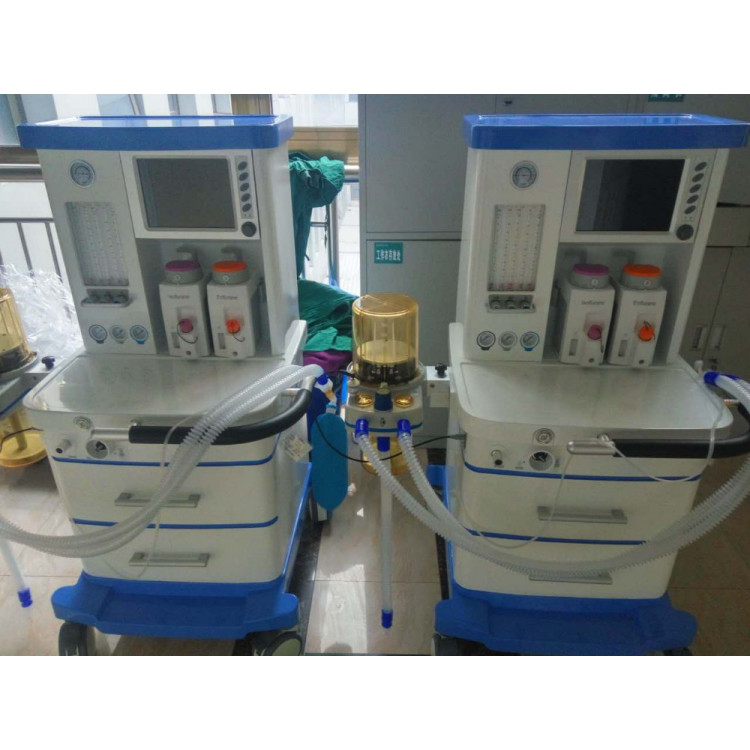

6100 Anesthesia System

Friendly,  Powerful, Reliable

Application：

The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

• Simplicity: easy to use, easy to move with 4 wheels.
• Choice: adapt the equipment to your patients and procedures freely
• Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 5 modes: IPPV; A/C; PCV; SIMV; SIGH.
• Designed and manufactured by Superstar Medical with over 23 years experience in this area.
• Flexible configurations to suit your needs.
• International standard and advanced technology suitable for wide range use.
• Compact interface and big screen give you better operating experience.
• Over 3,000 units installed in the world.

Features

• 10.4” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
• High precision flow meter, instantly know the fresh gas flow to your patient.
• Integration breathing circuit design, ensure easy operating and keep tidy.
• Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
• Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
• Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
• Real time pressure-time, flow-time loop graphics and high precision O₂ concentration detection function included.
• Vital sign monitor and Anesthetic gas monitor are optional.
• ETCO₂ module is optional.

Safety

• Three level alarming system, visual and sound alarm information.
• With lots of alarming, reminding and protection functions.
• Advanced power management control technology.
• With built-in backup power source, when outside power source goes off, back-up power source starts to work.
• Low O₂ pressure alarm and N₂O cut-off protection.



Specifications

Ventilation modes:	IPPV; A/C; PCV; SIMV; SIGH; MAUN
Ventilator parameter ranges
Flow meter	O2(0.1-10L/min)
	N2O(0.1-10L/min)
	AIR(0.1-10L/min)
Rapid oxygen supply	35L/min-75L/min
Tidal volume(Vt)	0, 20 mL ～ 1500 mL
Frequence（Freq）	1bpm ～ 100 bpm
I/E	4:1～1:8
PEEP	0cmH2O ～ 30 cmH2O
Pressure triggering sensitivity（PTr）	－20 cmH2O ～ 0 cmH2O（Based on PEEP）
Flow trigger sensitivity （FTr）	0.5 L/min ～ 30 L/min
Pressure control (PC)	5 cmH2O ～ 60 cmH2O
SIGH	0(off)  1/100 ～ 5/100
Apnea Ventilation	OFF，5 s ～ 60 s
Pressure Limit	20 cmH2O ～ 100 cmH2O
Monitored Parameters
Frequence（Freq）	0 /min ～ 100 /min
Tidal volume(Vt)	0 mL ～ 2000 mL
MV	0 L/min ～ 100 L/min
Oxygen concentration	15 % ～ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
Size Wooden case packing size：L 770*W 890*H 1535mm , GW：151KG ; NW：91.2KG Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	＜11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway  pressure alarm Low Airway  pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	＜12.5 kPa
Fan error Oxygen deficit	Show on screen Show on screen
Working conditions
Gas source	O2,N2O,AIR
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Input power	85VA
Vaporizer

Anesthesia gas	Adjustable scope % (volume percentage)
Halothane	0 ～ 5
Enflurane	0 ～ 5
Isoflurane	0 ～ 5
Sevoflurane	0 ～ 8
