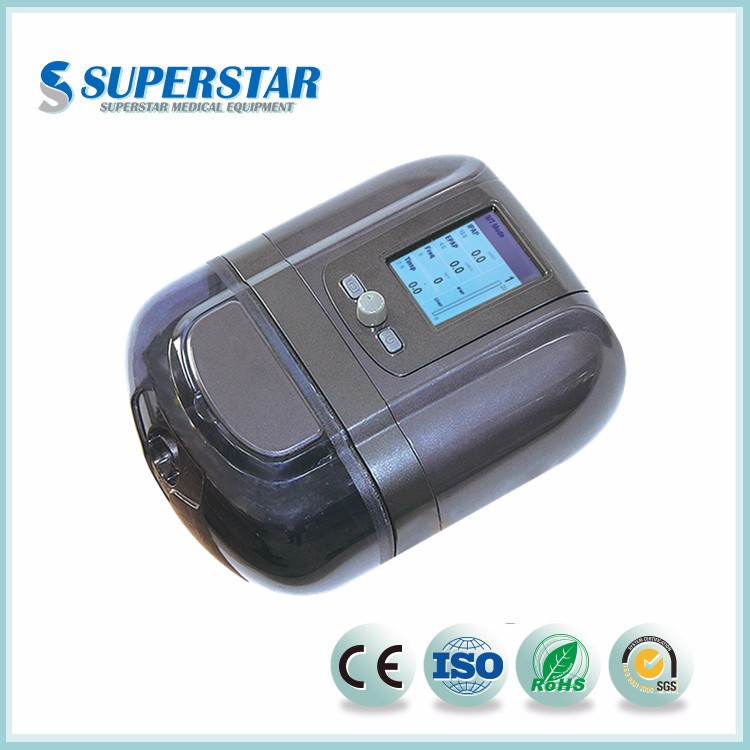

S9600 Sleep Therapy Machine​

The Bipap System makes a good performance in sleep center, home and other departments. From high to low acuity, simple to complex cases, adult to geriatric patients, medical Bipap System offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Description

S9600 Sleep Therapy System

Friendly Powerful Reliable

Application:

The Bipap System makes a good performance in sleep center, home and other departments. From high to low acuity, simple to complex cases, adult to geriatric patients, Perlong Medical Bipap System offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to take with your package anywhere.

l Choice: adapt the equipment to your patients and procedures freely.

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 4 modes: CPAP; S; T; S/T.

l Designed and manufactured by Perlong Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and screen display give you better operating experience.

l Over 2,000 units installed in the world.



Features

l TFT LCD screen displays the Ventilation parameters and alarming information.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Optimized design and fine manufacture, cooperating sound absorption composite, unique super mute design.

l Unique shuttle knob design, easy to operate and use in house.

l No need to add water by stopping the machine, very easy to use.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

Specifications

Ventilation modes: CPAP,S,T,S/T
Frequency Adjusting range:3bpm-40bpm
Increment:1bpm
Inspiration time Adjusting range:0-3s
Increment:0.1s
IPAP Adjusting range:4cmH2O-25cmH2O
Increment:0.5cmH2O
EPAP Adjusting range:4cmH2O-20cmH2O
Increment:0.5cmH2O
CPAP Adjusting range:4cmH2O-20cmH2O
Increment:0.5cmH2O
Ramp time Adjusting range:0-60min
Increment:1min
Rise time Adjusting range:0.1s-0.5s
Increment:0.1s
Inspiration trigger Adjusting range: auto adjusting, 1-3
Increment:1
Expiration trigger Adjusting range: auto adjusting, 1-3
Increment:1
Flex Adjusting range:OFF, 1-3
Increment:1
Humidifier Adjusting range:0-5
Increment:1
Ppeak 0-30cmH2O
Graphical display:

Airway pressure histogram

Size

Carton packing size:L 285*W 350*H 290mm , GW:4.5KG ; NW:3.5KG

Alarm and protection

Low ventilation 0-15L/min
High airway pressure 20cmH2O-30cmH2O
High frequency 1bpm-99bpm
Low frequency 1bpm-60bpm
Suffocation warning 8s-12s no spontaneous ventilation
The maximum limited pressure <12.5 kPa
Pipe detached

Working conditions

Using conditions

Pipe detached 16s
Environmental temperature 5℃-35℃
Relative humidity 15%-95%
Atmosphere pressure 830hPa-1060hPa
Storage conditions -20℃-+60℃
Relative humidity 15%-95%
Atmosphere pressure 500hPa-1060hPa
